Our motorised retractable pergola puts the weather on your terms. One button opens the louvres for sunshine. Another closes them tight against rain. Built from 100% aluminium with integrated drainage running through every column, your outdoor space stays bone-dry through Melbourne’s worst downpours and opens straight back up the moment the sun returns. Installed across Melbourne and the Mornington Peninsula.
Request a free measure and quote
How a motorised louvred pergola works
The motorised louver system uses a remote-controlled motor to rotate the aluminium louver blades between fully open and fully closed positions. When the louvers are open, you get natural sunlight and a cooling breeze at whatever angle you choose. When they’re closed, the roof becomes completely waterproof — rainwater flows along the integrated drainage grooves, down through the columns, and away from your entertaining area.
This means you’re not choosing between sun or shade. You’re getting both, whenever you want them, without leaving your seat.
Key features
100% aluminium alloy construction
Every component of our louvred pergola is manufactured from premium aluminium alloy. Unlike timber or steel alternatives, aluminium won’t rust, rot or warp over time. The result is a structure that looks as good in 20 years as it does on day one, with virtually no maintenance required.
Built-in LED lighting
Integrated LED light strips are built into the louver roof, creating warm ambient lighting for evening entertaining. There’s no need to install separate outdoor lights or run additional wiring — everything is built into the pergola structure itself.
Integrated drainage system
When the louvers are closed, rainwater channels along precision-cut grooves in each blade. The water flows into the gutter beams and drains down through the hollow columns, exiting through a drainage port at the base. Your outdoor area stays completely dry, even in heavy rain.
Hidden screw design
We use a scientific internal groove design to connect columns and beams, with all screws hidden inside the structure. The result is clean, smooth lines with no visible fixings — a far more refined look compared to pergolas that bolt columns and beams together with exposed screws on the surface.
Remote control operation
Adjust your louvers from anywhere in the entertaining area using the included remote control. Open them up for morning sun, angle them for afternoon shade, or close them completely when the rain sets in. The motorised system is quiet, reliable and built to last.
Specifications
| Feature | Detail |
|---|---|
| Material | 100% aluminium alloy |
| Louver blade size | 168mm × 35mm × 1.5mm |
| Gutter beam size | 140mm × 85mm × 1.5mm |
| Column size | 120mm × 120mm × 1.5mm |
| Standard colours | Ivory white, galaxy grey |
| Lighting | Built-in LED strip lighting |
| Control | Remote control (standard) |
| Drainage | Integrated louver-to-column drainage system |
| Service life | 20 years |
| Coating | Environmentally friendly spray finish |
Standard sizes
| Width | Extension | Height |
|---|---|---|
| 3.0m | 3.0m | 2.7m |
| 3.0m | 4.0m | 2.7m |
Custom sizes are available. We manufacture to your exact measurements to ensure a perfect fit for your outdoor space.
Configuration options

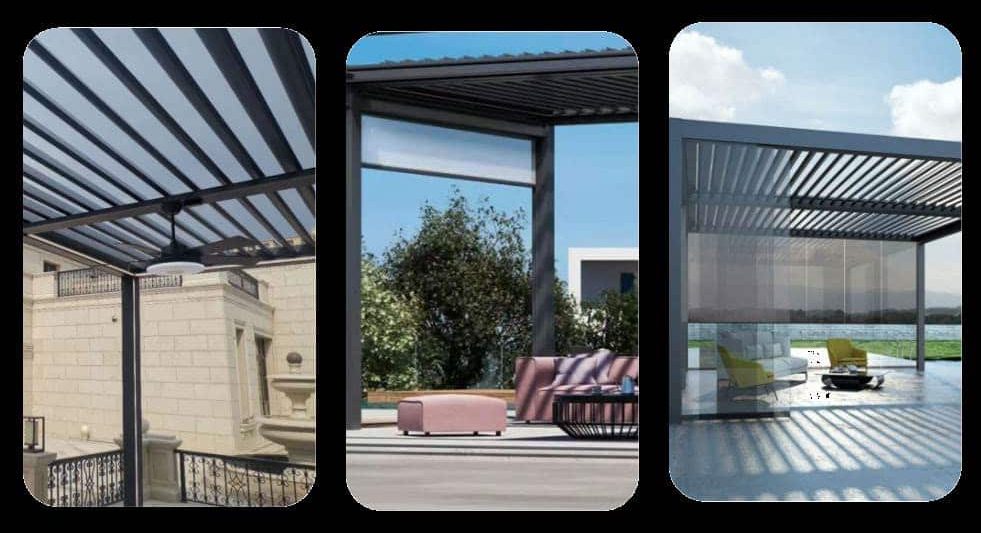

Our motorised louvred pergola can be configured as a freestanding single unit or joined as a double unit for larger areas. It also pairs beautifully with other outdoor living solutions to create a fully enclosed or semi-enclosed entertaining space:
- With track blinds — add side protection from wind, rain and insects while maintaining your view
- With sliding glass doors — create a fully enclosed outdoor room that’s usable year-round
- With ceiling fan — improve airflow and comfort during warmer months
Where it works
The motorised louvred pergola is ideal for a range of residential and commercial applications across Melbourne and the Mornington Peninsula. We’ve installed them over outdoor lawns, patios, pool areas, courtyards and decks. They’re also popular with cafés, restaurants and bars looking to create weather-proof alfresco dining spaces.
Pricing
Our motorised louvred pergola starts from $10,990 installed for the standard 3m × 3m configuration. The larger 6m × 3m double unit starts from $15,500 installed. Every installation includes a free on-site measure, custom manufacturing to your exact specifications, and professional installation by our team.
For a detailed quote tailored to your space, get a free quote or call 1800 957 222.
Why choose AJL Group for your pergola
AJL Group has been supplying and installing blinds, shutters, awnings and outdoor living products from our Carrum Downs showroom and manufacturing facility for years. When you buy from us, you’re dealing directly with the people who make and install your product — not a middleman.
We back every installation with our satisfaction guarantee, and our team handles everything from the initial measure through to final installation. You can also visit our showroom to see the motorised louvred pergola in person before you commit.
Browse our full outdoor pergola range or explore our retractable awnings for an alternative outdoor shading solution.
Frequently asked questions
How long does installation take?
Most residential installations are completed in one to two days, depending on the size and configuration. We handle all the heavy lifting — you just need to be home for the install.
Can the pergola handle heavy rain?
Yes. When the louvers are fully closed, the roof is completely waterproof. Rainwater drains through the integrated gutter and column system, so your outdoor area stays dry even in a downpour.
Do I need council approval for a pergola?
Permit requirements vary by council. In many cases, a freestanding pergola under a certain size doesn’t require a permit, but we recommend checking with your local council. We can advise you on this during the free measure appointment.
What colours are available?
The standard colours are ivory white and galaxy grey. Custom colours may be available on request — contact us to discuss your options.
Can I add accessories later?
Absolutely. Zipscreen blinds, sliding glass doors and ceiling fans can all be added after installation. Many customers start with the pergola and add accessories as they go.
How does it compare to a fixed roof pergola?
Unlike a fixed roof, a motorised louvred pergola gives you the flexibility to control how much light and air enters your outdoor space. On a nice day, open the louvers and enjoy the sunshine. When the weather turns, close them for full protection. It’s the best of both worlds.
